Bluetooth Speaker – Bluetooth V4.0 Hi-Fi Speaker – Vacuum Tube Style Amplifier – 10W RMS 120W PMPO – ValveBox – Retro / Vintage Style by ProperR
126.00 USD
This bluetooth speaker will work with all Bluetooth enabled devices – iPhone, iPad, iPod, Android phones, Tablets, and many other devices.

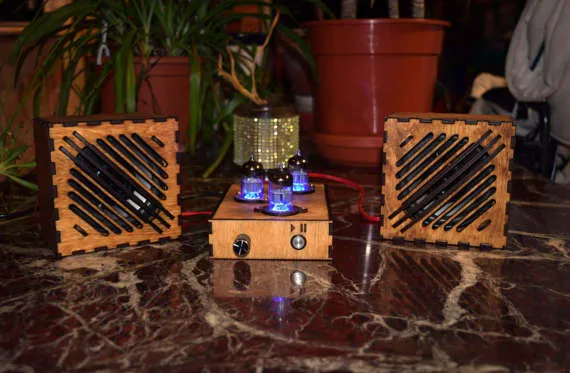

Main module is enclosed in a small case, with two knobs – volume regulator and Power – Play/Pause button. Vacuum tubes are used for decor, and they are fastened with a special holder secured by copper rivets.
Acoustic system case is built from finest birch plywood, carefully glued together; inside is glued with audio felt to prevent any parasite resonance.
What is in the set?
You can purchase complete set – Bluetooth Amplifier module with two speakers and AC power adapter;
Another option is to purchase only Bluetooth amplifier module with AC power adapter and use your speakers. Speaker resistance must be equal or higher than 4Ohm, and the must withstand 10W RMS power (It is approx 120W PMPO).
What's inside?
Inside acoustic system is located 4" two-way speaker. Main module is built on base of Bluetooth V4.0 CSR chip, speakers are driven via D class amplifier. All is powered by 12VDC 2A power adapter.
Speakers main parameters – 4Ohm, 30W RMS.
How it sounds?
Sounds loud and clear! All frequencies are audible, clear treble, powerful bass. Electrical RMS power supplied to speaker – 10W (120W PMPO); it is a standart for most of shelf systems.
Operation instructions:
1) Connect speakers to main module;
2) Connect power adapter and plug it in AC socket;
3) Press and hold (Play/Pause) button until it lights up and power-on sound is heard from speakers;
4) Wait few seconds, when (Play/Pause) button starts to flash – device is ready to connect.
5) Connect device via Bluetooth to your phone/tablet;
6) Use volume control knob to set desired volume level (you can use volume, balance, equalizer controls on your bluetooth enabled phone/tablet too);
7) Use controls on your phone/tablet or single press (Play/Pause) button to pause and unpause your music;
8) When you want to switch off – press and (Play/Pause) button until light on it turns off – this means device is disconnected and powered off – vacuum tubes will be illuminated always;
9) If you need, then switch off power adapter from AC plug – this completely powers off system.
Every item is carefully tested before shipment.
================
Sizes (approx.):
Acoustic System:
Height – 11 cm / 4,3 in
Length – 11 cm / 4,3 in
Width – 7 cm / 2,7 in
Main module:
Width – 10 cm / 3,9 in
Length – 15 cm / 5,9 in
Height (with tubes) – 8 cm / 3,1 in
================
Electronics used:
4 Ohm 10cm / 4 in loudspeaker;
Bluetooth V4.0 circuitry;
Hi-Fi volume control circuitry;
Hi-Fi D-class amplifier;
================
+Unique handmade item.
Feel free to ask any questions.
